Starting systems

for cross events

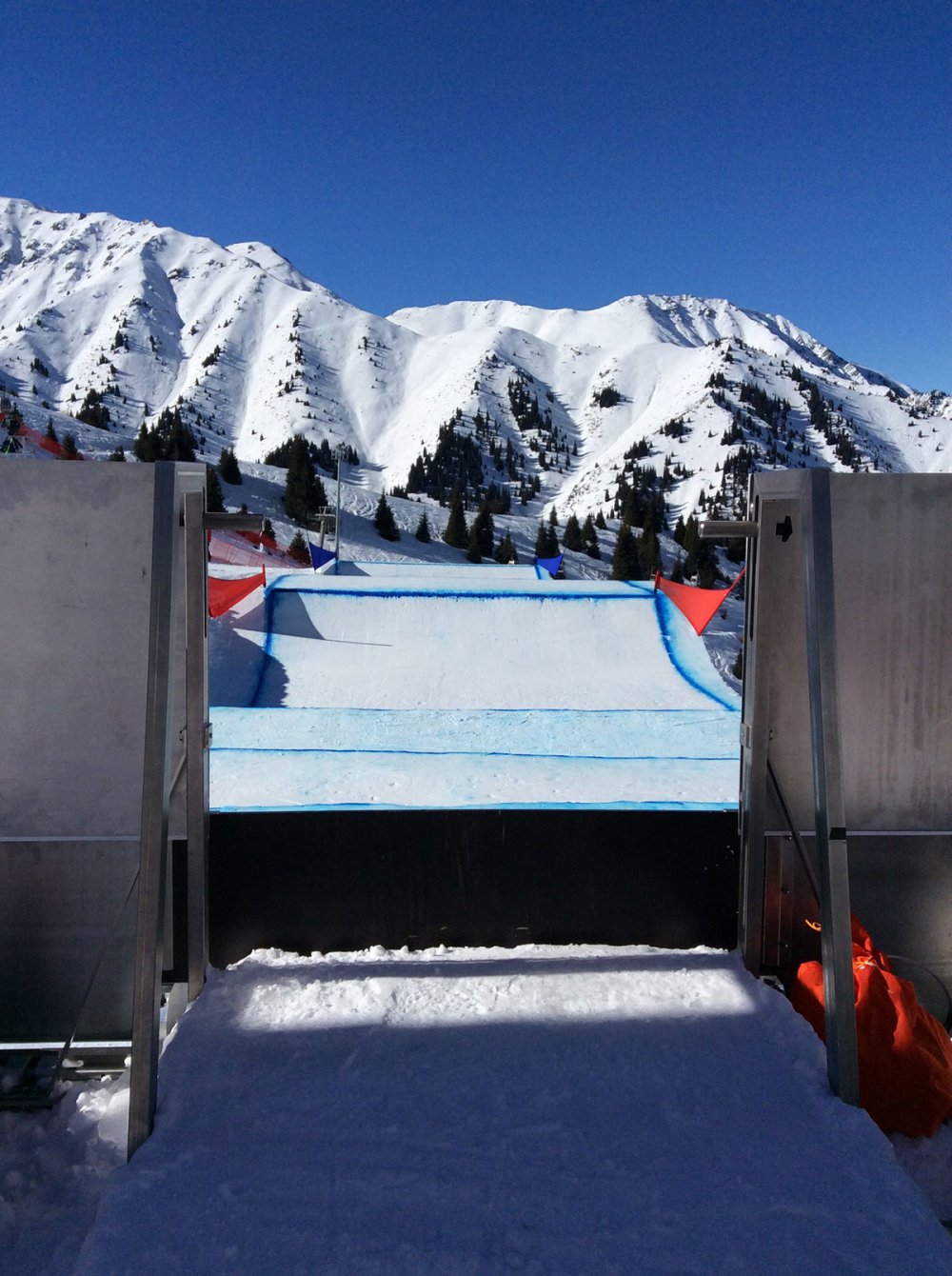

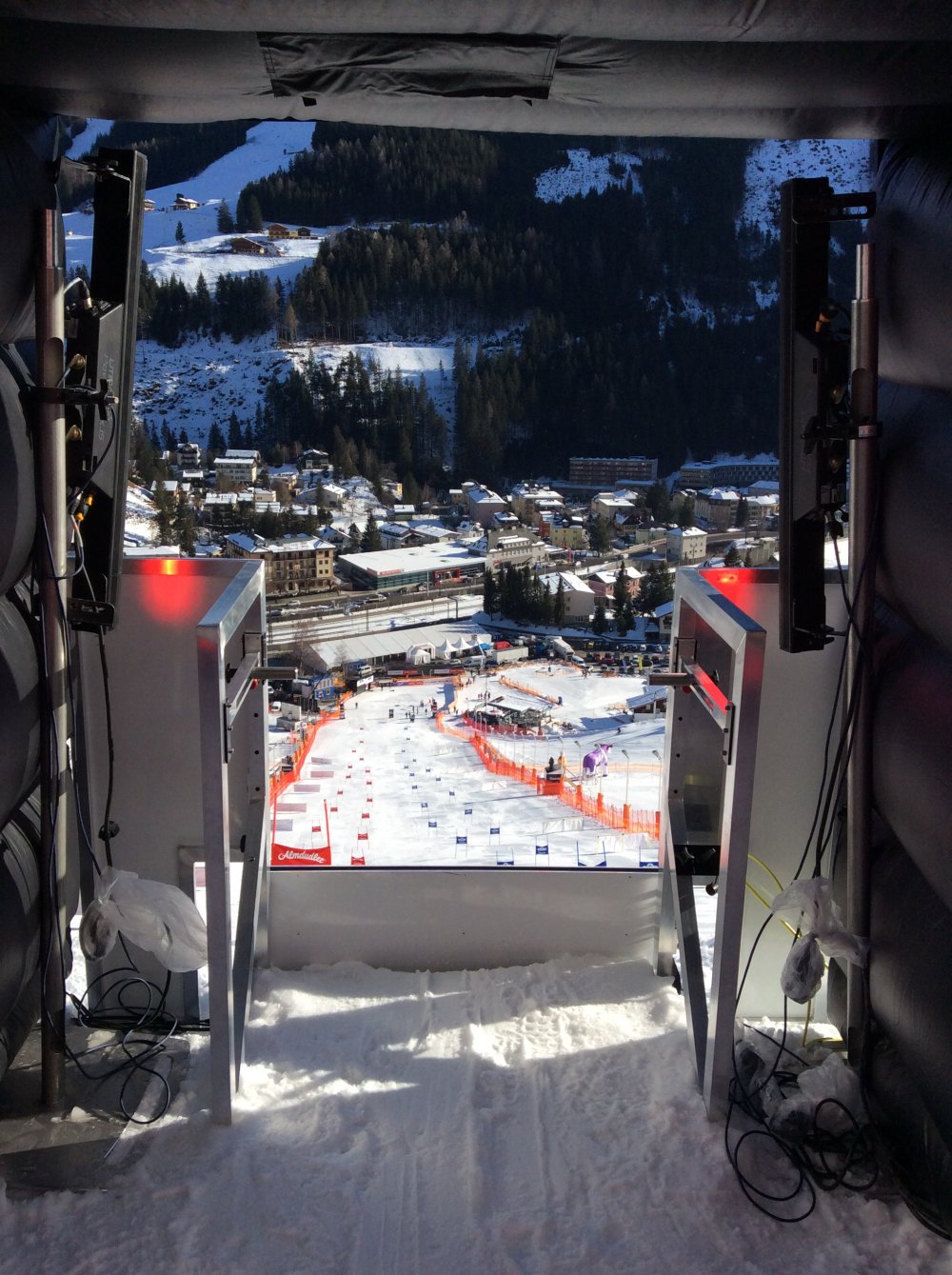

Our start gates for the cross area are all patented and correspond to the international standard for professional winter sports of the FIS. All our systems are manufactured in our production facility in Lindenberg / Germany. The starting system has already been used successfully at FIS races, European Cups, World Cups and the Olympic Games. The last big HIGHLIGHT was in Pyeongchang in 2018.

100% EXACT START

Thanks to the mechanical system, our starting systems offer a precise and simultaneous starting process. Electronic and automatic triggering with random programming is recommended as an accessory.

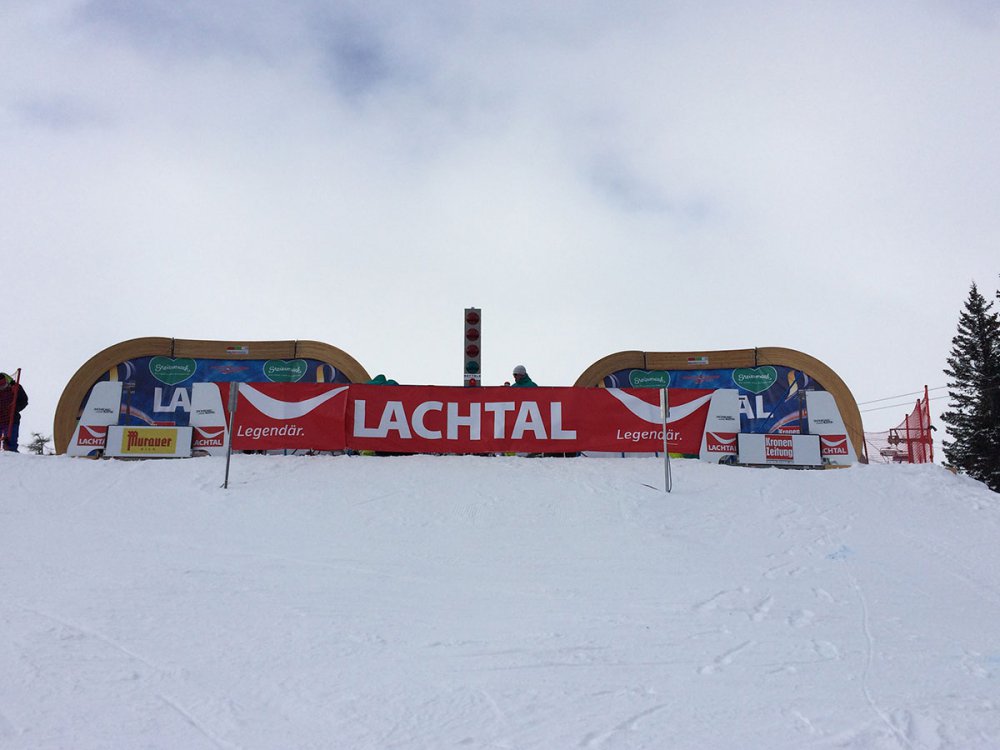

ADVERTISING SPACE - FOR YOUR SPONSORS

The system offers attractive advertising spaces at the gates and between the modules.

Team-Events

Thanks to our modular design of the Startgate X Cross, any number of modules can be combined to form a Startgate X Cross team. This makes it possible to use the sophisticated system of the Startgate X Cross including the accessories for the team competition. What is new is the convenient and easy separation of the mechanics so that each gate can be controlled and triggered individually.

Configuration

Our modular system can be adapted to the respective task as required. You can choose between one, two, four or six starters.

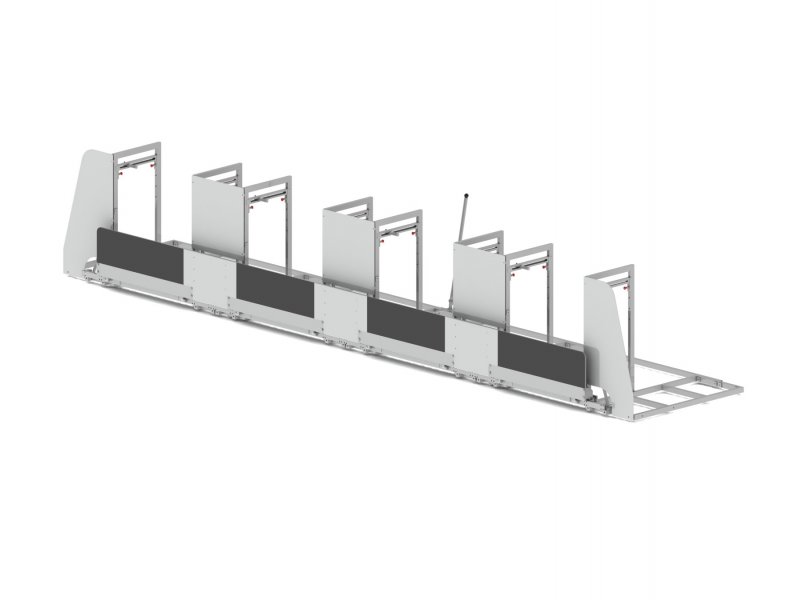

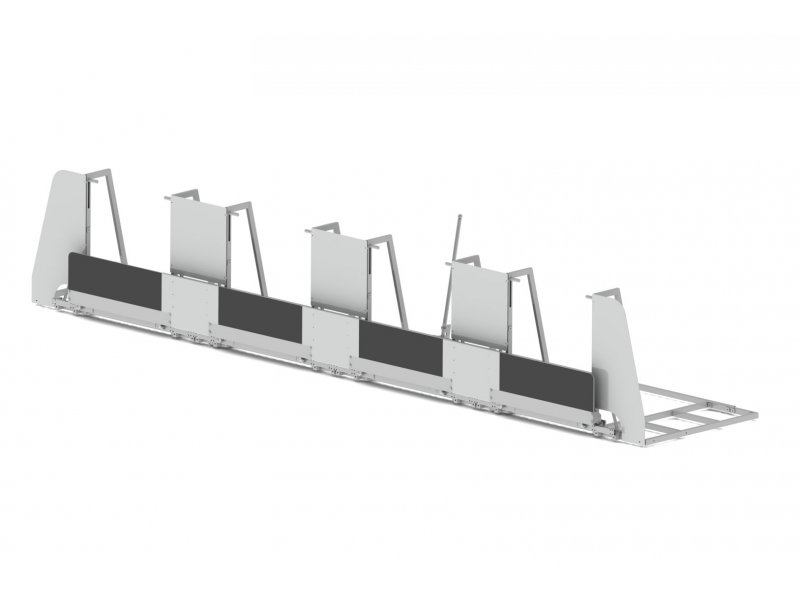

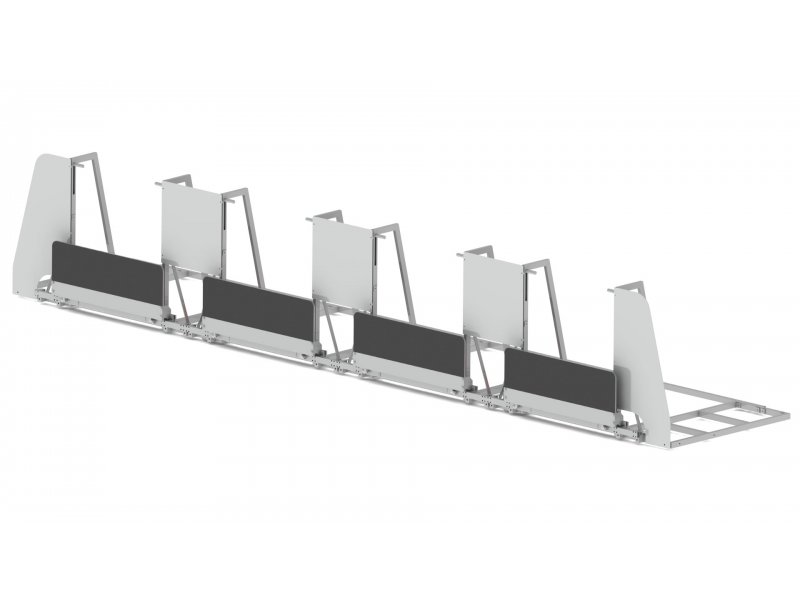

Startgate X Cross 4

Startgate X Cross 4

Configuration for 4 starters

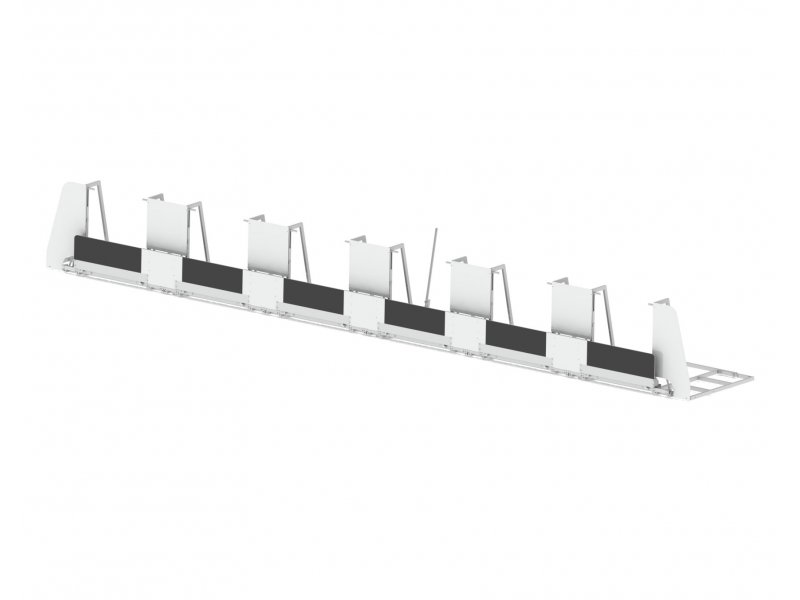

Startgate X Cross 6

Startgate X Cross 6

Configuration for 6 Starters

Startgate X Cross Team

Startgate X Cross Team

Configuration for team events

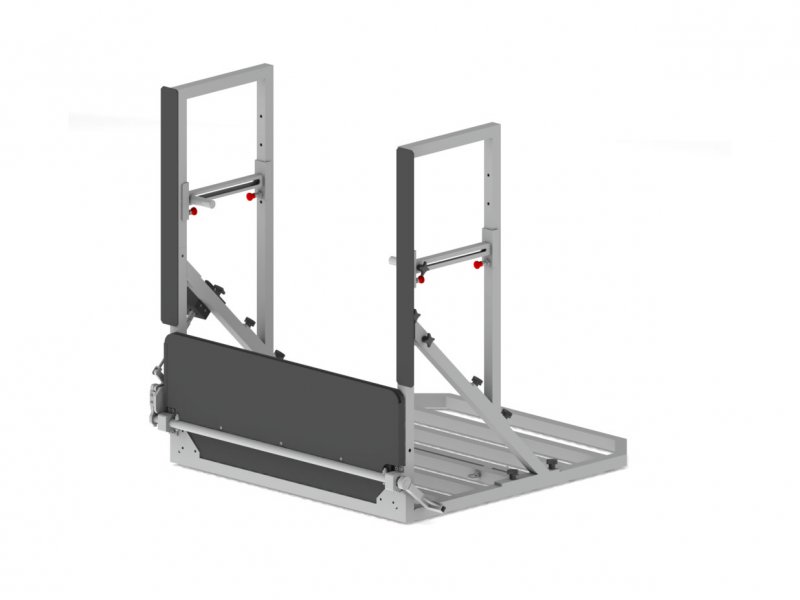

Startgate X Cross 4 Paralympics

Startgate X Cross 4 Paralympics

Startgate with flexible vertical and horizontal handle adjustment.

Startgate X Cross Junior

Startgate X Cross Junior

identical to the Startgate X Cross Worldcup, size adapted for the juniors.
With a subsidized special price.

Starting systems

for parallel events

The exact triggering of the start gates takes place via an electro-mechanical system. As a result, the distance between the two gates can be freely selected. For the start gate // an electro-mechanical release unit is required for each gate. The start intervals are controlled by countdown and indicated by acoustic and visual output. Another new feature is the easy return function of the dropboard using a hand lever.

NEW - TOUCHSCREEN CONTROL

Our new control system has a touchscreen that enables start lists and times to be entered directly. A time-delayed triggering of the start gates can thus be achieved easily and conveniently. The control is the complete solution, especially for parallel and team events.

Products

Depending on your requirements, you can choose from the following products

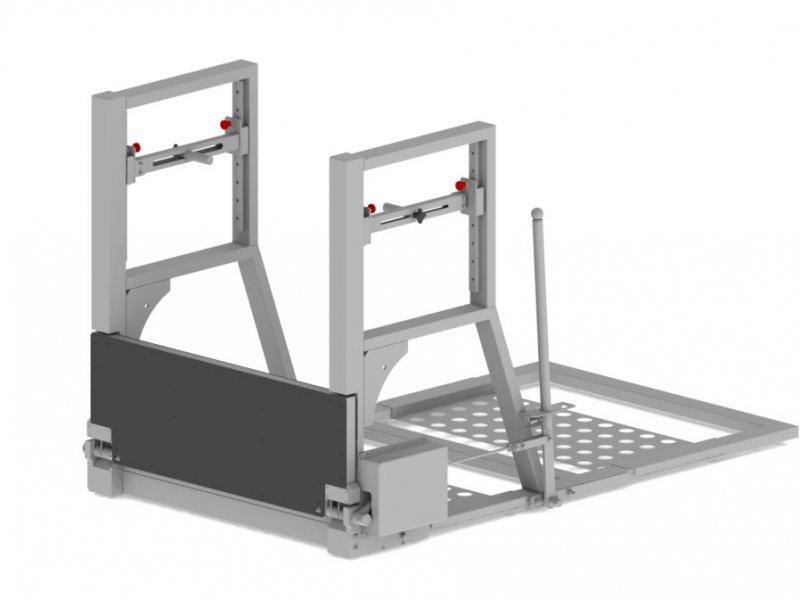

Startgate // Parallel WorldCup

Startgate // Parallel WorldCup

The solution for the competition

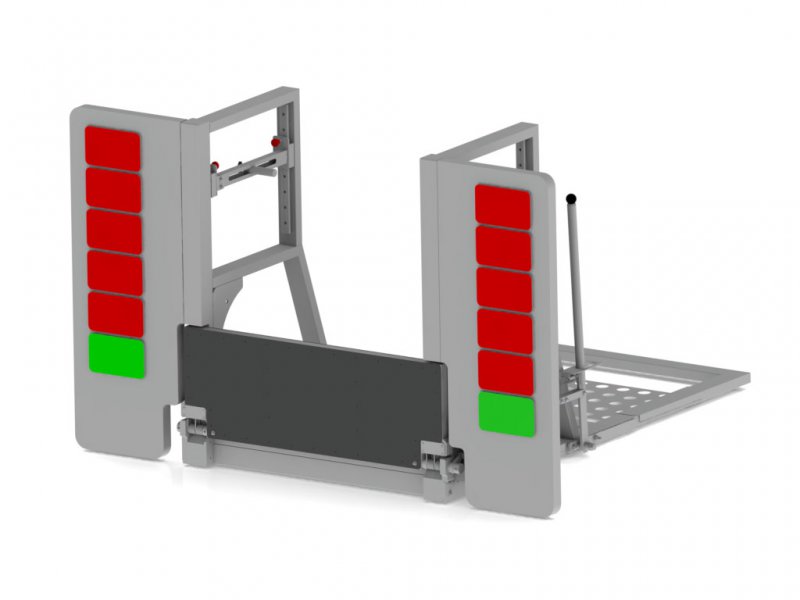

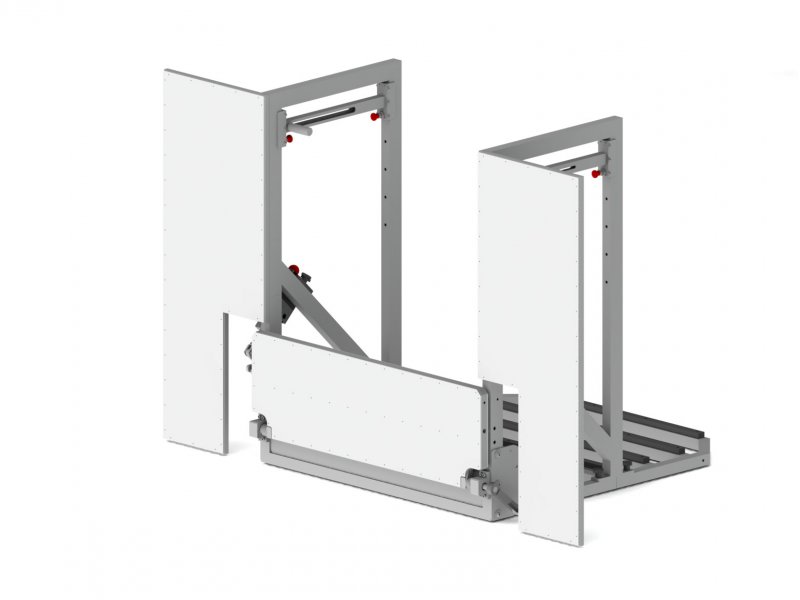

Startgate // Parallel WorldCup Night Vision

Startgate // Parallel WorldCup Night Vision

optionally with TFT monitors for displaying logos, national flags, etc. or side panels with large-area LED traffic light signals

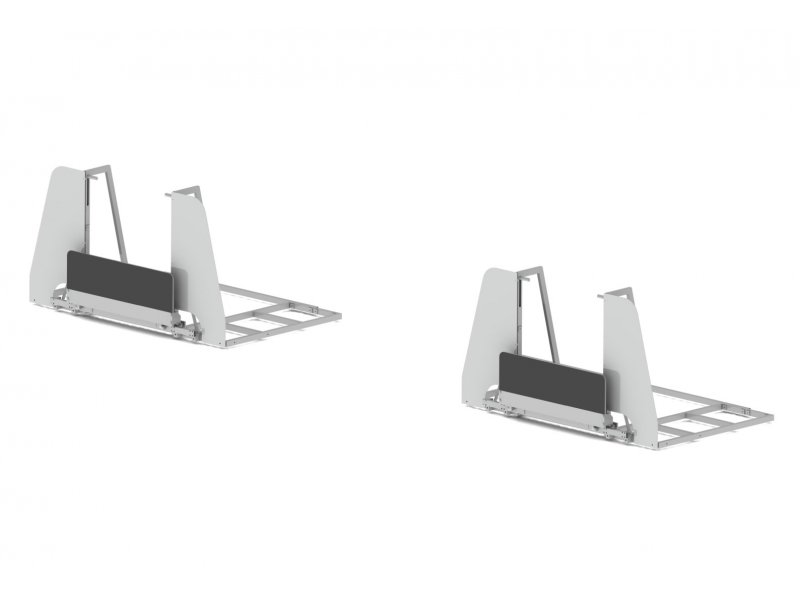

Startgate // Parallel Modular

Startgate // Parallel Modular

Thanks to our modular design of the Startgate X Cross, two modules can be assembled to form a Startgate // Parallel Modular.

Startgate // Parallel Mogul

Startgate // Parallel Mogul

Start gate for the spectacular parallel mogul slope events.

Parallel events

Light competition and training facilities

These gates are made of aluminum or carbon. This makes the systems stable and particularly light. The start gate consists of a single starting place. It is intended on the one hand as a training facility for winter and summer and on the other hand for parallel competitions as a light alternative to the Start Gate WC.

UNCOMPLICATED TRANSPORT AND ASSEMBLY

The gates are almost completely assembled. They can be easily assembled and dismantled in just a few steps. Transport is easy and comfortable due to its low weight. In addition, the gate can simply be folded up and stowed in the transport bag.

TRIGGER

The start can be triggered manually or electronically. Together with our electronic control systems, it forms a complete setup for competition and training measures. By using the random system, it is also possible, for example, to trigger the start signal during training yourself. This enables an optimal start training to be completed.

Products
NEU! Parallel FIS Evolution

NEW! Parallel FIS Evolution

High-end start gate for high demands. 24 volt operation for minimal dimensions and battery packs for a long service life.

Further information

Startgate // Parallel FIS

Startgate // Parallel FIS

Standard design

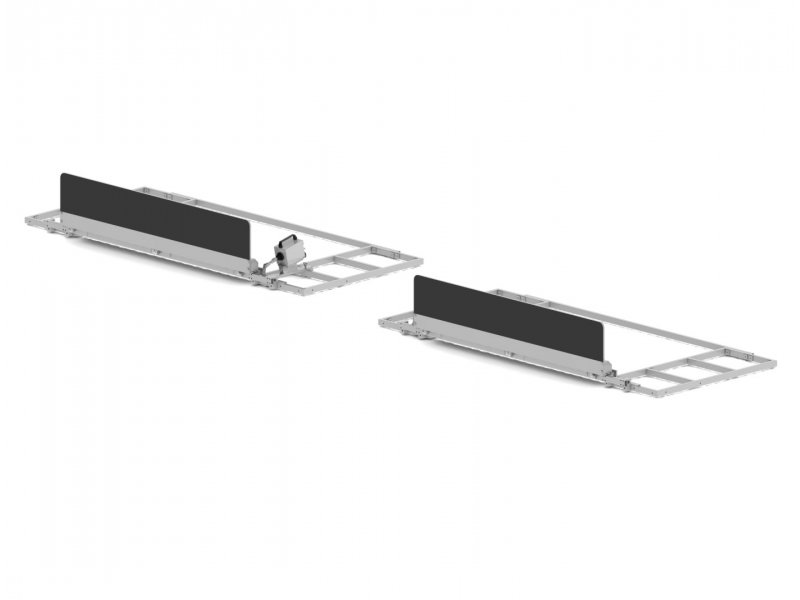

Startgate // Parallel Travel Carbon

Startgate // Parallel Travel

Aluminum and carbon construction with a minimal pack size and a total weight of only 8kg

electronics

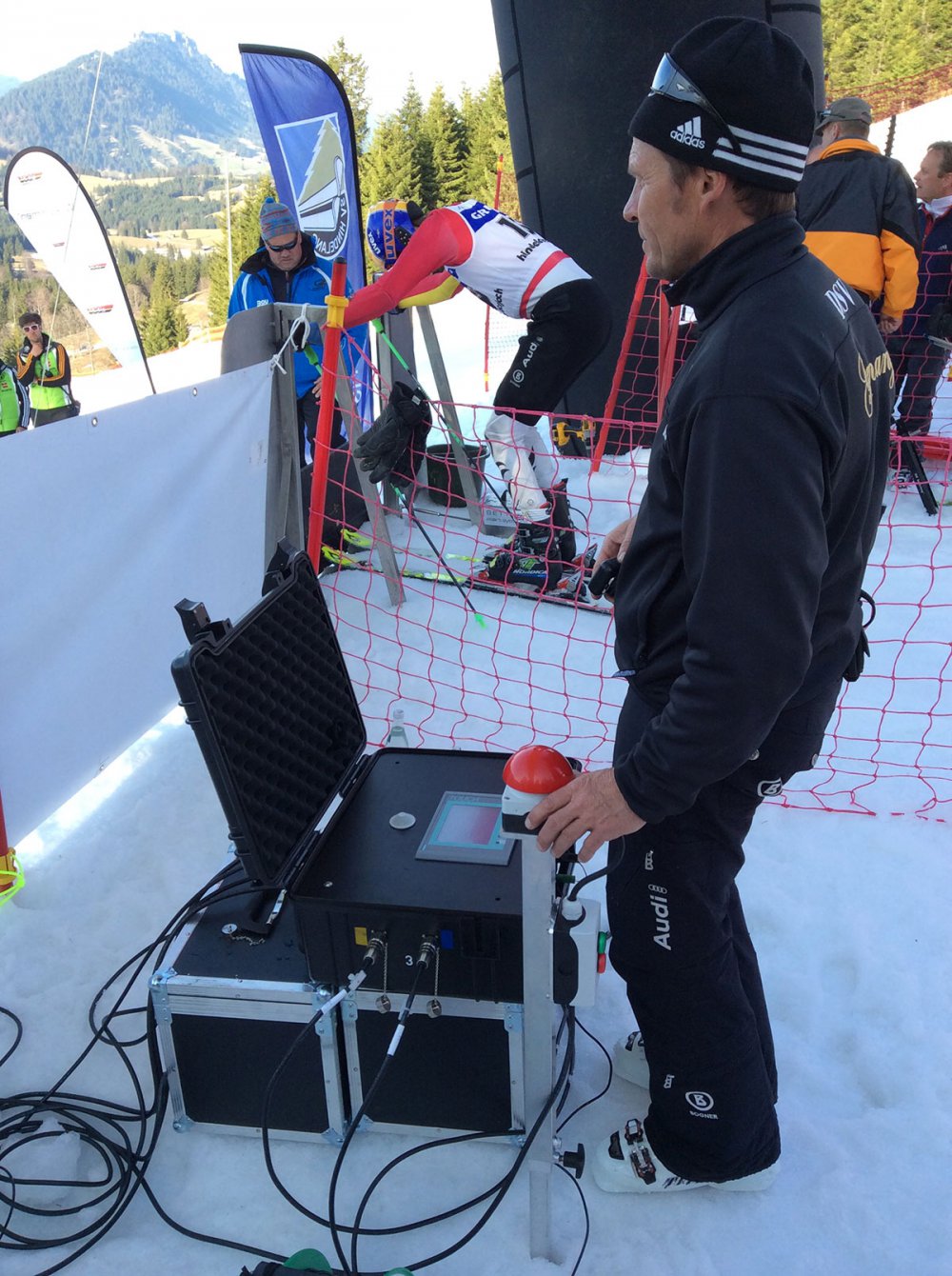

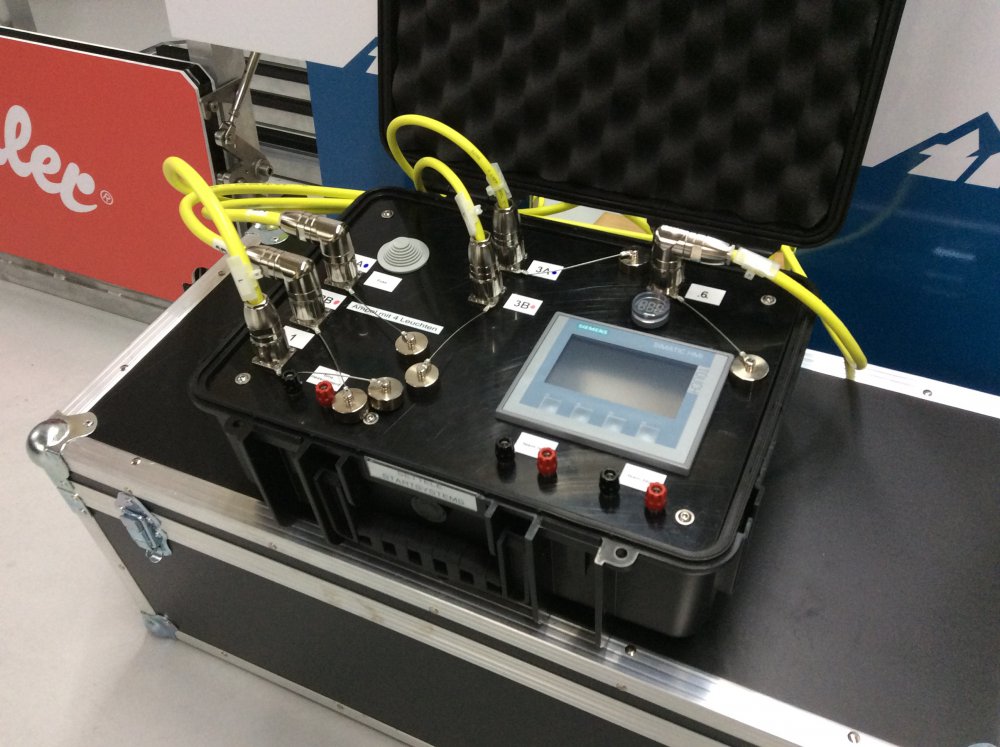

Control systems

All of our control systems are stable and insensitive to impacts, built into waterproof outdoor cases with high-quality sockets for connecting the cylinders, buttons and power supply according to outdoor standards. All components are manufactured in high industrial quality. Depending on the type, our control systems have a touchscreen and various outputs for traffic lights and signal systems. The controls are compatible with common timing systems.

EDC 1 Cross

Control with random programming and output of the opening control impulses in a random principle in a time window of 1-4 seconds. The first choice for cross events!

EDC 4 All in One

By switching the individual programs, the individual disciplines can be selected: Cross, parallel with countdown, parallel with countdown and time delay, team races or relay competitions. Operation is via touchscreen. The simple menu navigation ensures uncomplicated and self-explanatory input.

EDC 5 Parallel Paralympics

Control with countdown programming, additionally with the possibility of a time offset through the first run, assigning a fixed factor to a runner and entering it. The control then calculates the factor with the addition of the time offset through the first run, the start times for the second run of the K.O. Parallel race.

EDC 6 Team Race

Control for team races, whereby the first opening impulse occurs synchronously and randomly. The second pulse takes place by processing the pulse sent from the line infeed to the start. Control with six connections and channels for outputting the opening impulses and control of the cylinders, as well as receiving the finish signals.

Signal systems

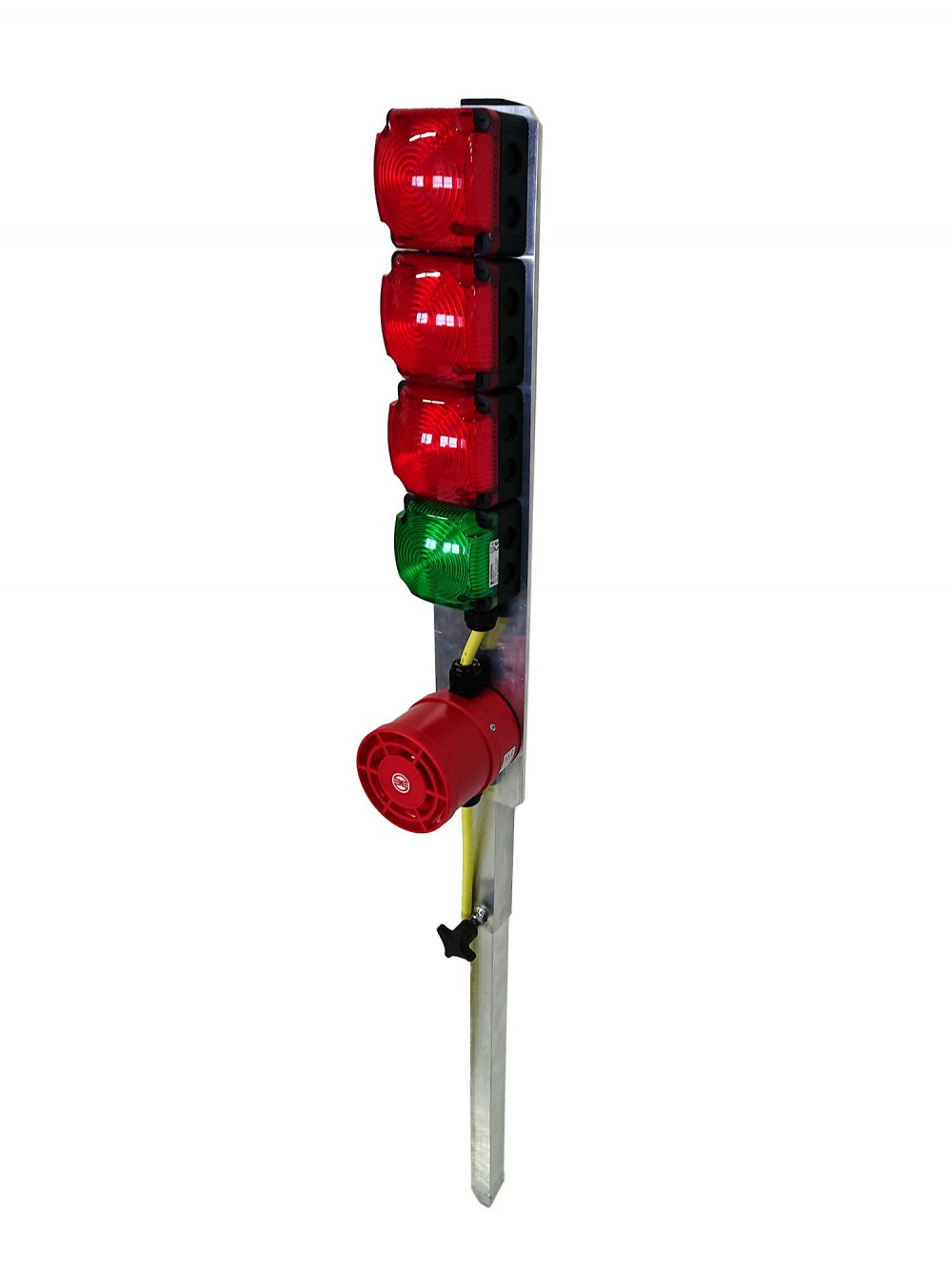

Traffic lights

Medium: The small traffic light system is specially designed to be attached to practically any point using Velcro and is designed for the visual output of the countdown systems.

Large: The middle ampal system is designed for the visual output of the countdown signals and is usually set up in front of the runner in his field of vision. The bright LED light signals are mounted on telescopic aluminum poles and can be retracted for transport.

XLarge: The large traffic light system is designed for the visual and acoustic output of the countdown signals. The very large LED panels are good for the audience and e.g. B. to pursue the goal at night finals.

SPEAKER

For output of the acoustic signal when countdown starts. The horn is mounted on telescopic aluminum poles and can be retracted for transport.

equipment

For the transport, protection and assembly of our launch systems.

Schneesschrauben

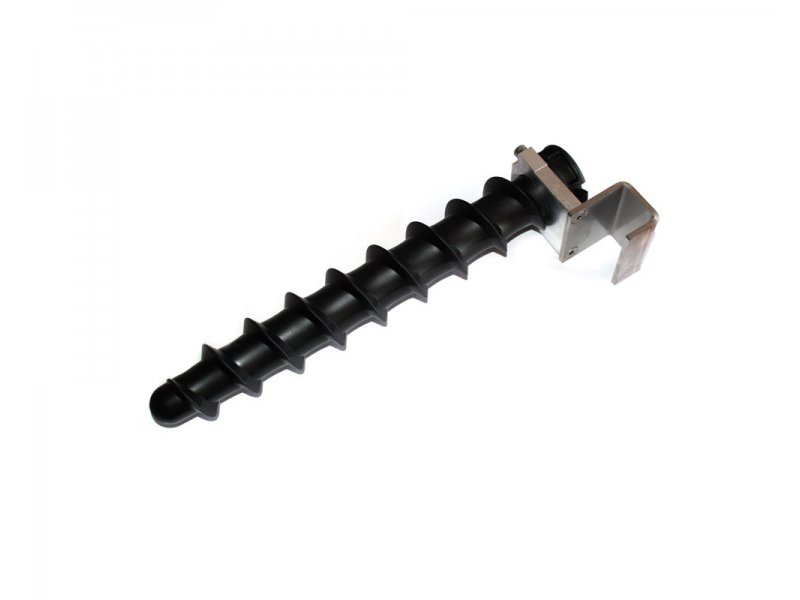

Snow Screws

Plastic snow screws with aluminum and stainless steel adapter plates for uncomplicated anchoring of the gates in the snow.

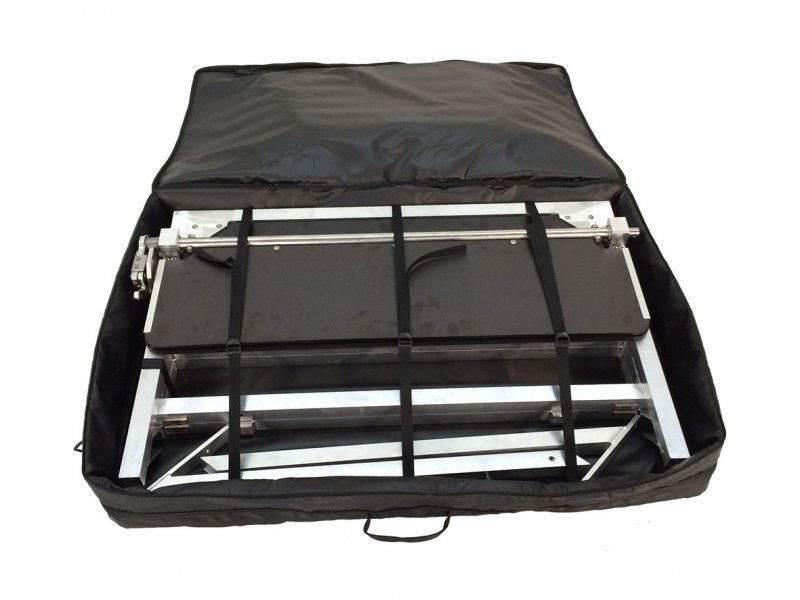

Bag FIS Gate

Bag FIS Gate

Lightweight and high-strength bag for easy transport of the FIS-Gate.

Manuelle Auslösung

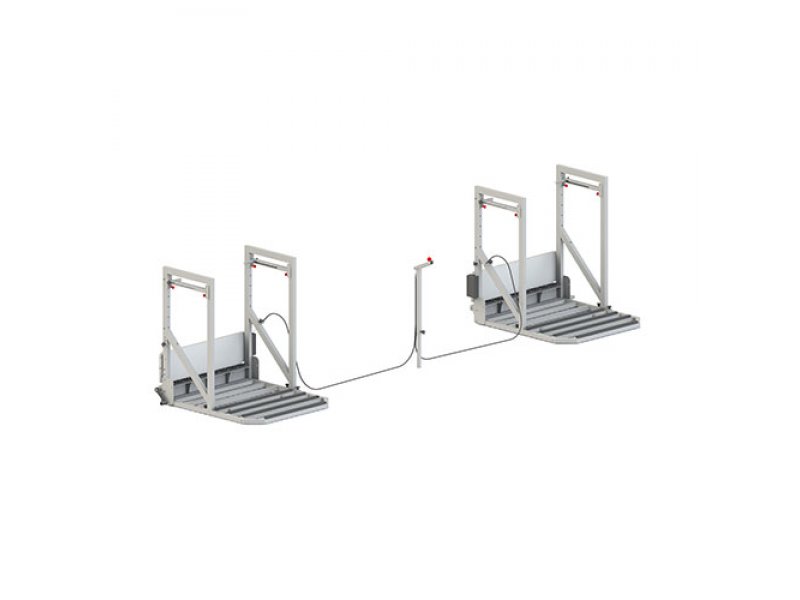

Manual release

Mechanical release for our FIS-Gate, for smaller budgets. It is triggered manually by means of a cable pull and replaces the electronic control, which can also be retrofitted later if required. Low weight and easy handling.

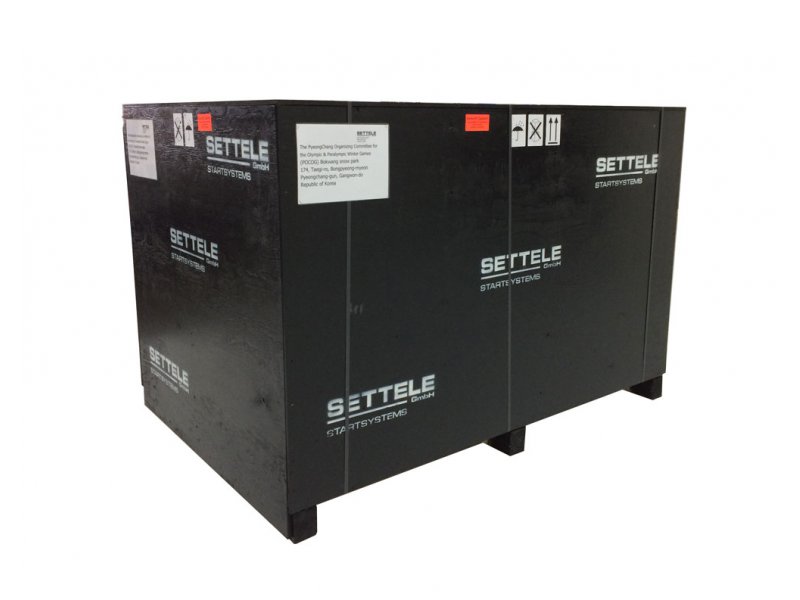

TRANSPORT BOX

TRANSPORT BOX

Custom-made boxes for transport and storage. Also suitable for transport with the snow groomer and certified for international transport. The wooden construction absorbs moisture and minimizes corrosion.

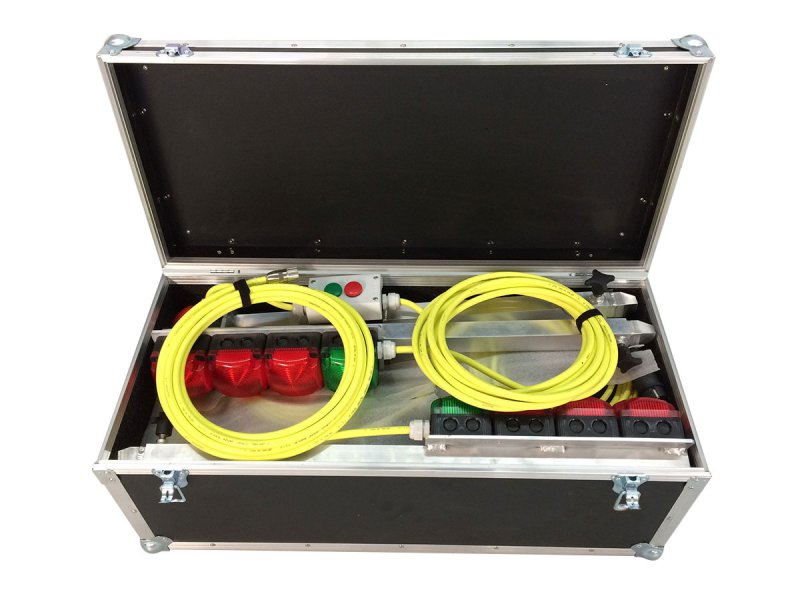

Flightcases

Flightcases

Custom-made flight cases for the transport of traffic lights and signal systems, start buzzer and horn

Persenning

Persenning

Lightweight cover made of sail material for protection in heavy snowfalls, rain or snow flurries. Available for all sizes.Color: black with logo print.

Messgeräte

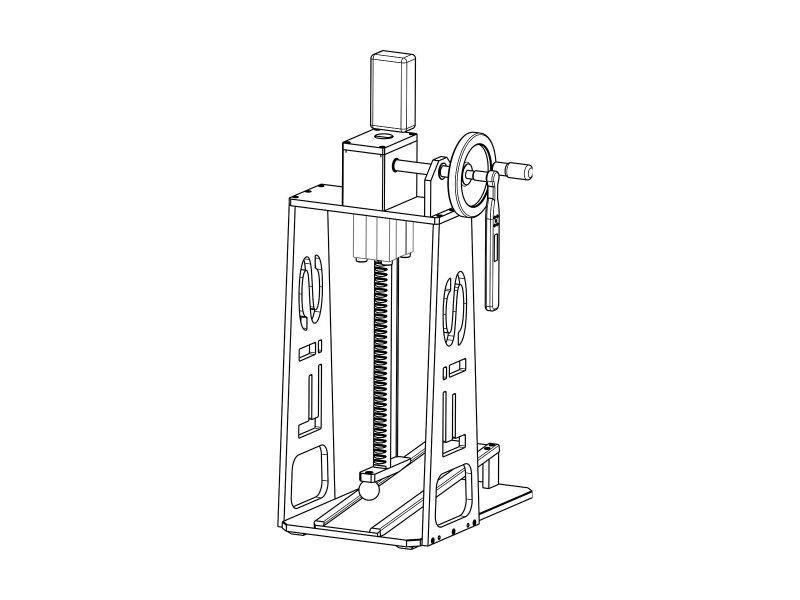

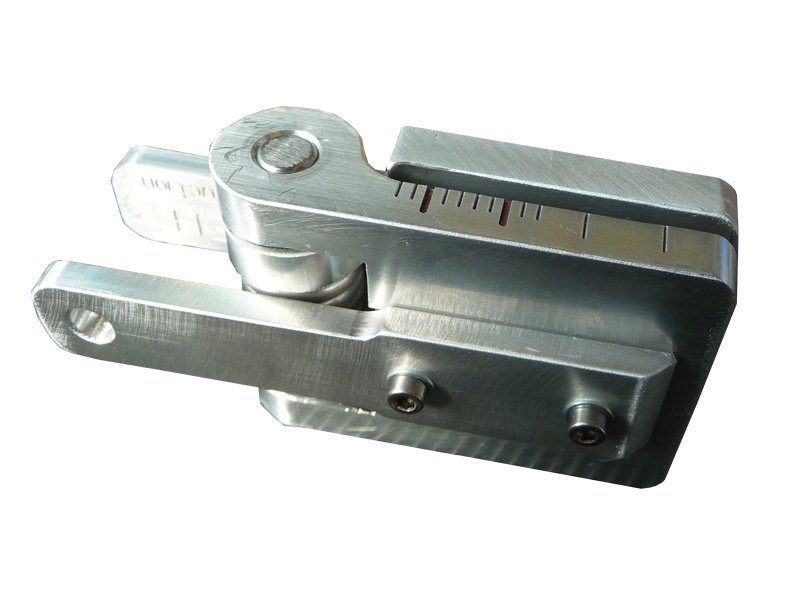

Measuring device

Measuring devices and devices for measuring standing height and measuring devices for measuring the height of panels

Anzugmessung

Suit measurement

Measuring device for tightening measurements at cross events. Download info and order form.

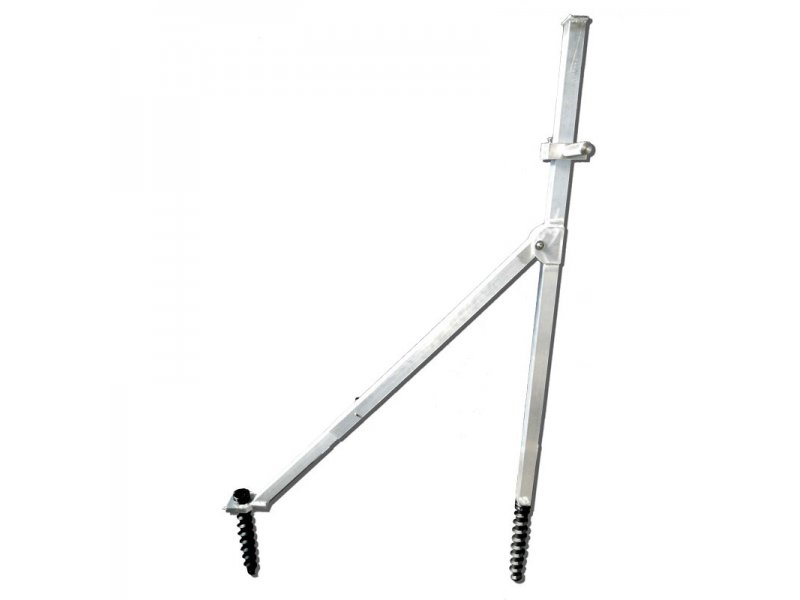

Training Gate Poles

Training Gate Poles

Training and push poles.
